Videohom® USB universal docking station with dual display outputs for laptop-Most of my friends had very unpleasant experience when they try to connect all USB devices, internet, LCD monitor, speaker, etc with their laptop in the work place. Not only waste lots of time to plug and unplug those stuffs every time, but also make the work space mess around with all the cables.

However, it’s all changed by this great USB Universal Multifunctional Docking Station. This product uses universal USB technology to pass through critical signals such as video, audio, LAN and peripheral connectivity (keyboard, mouse, card reader and printer).

The NBdock1920C USB Universal Dock Station device supports two display output at a time (DVI and VGA).

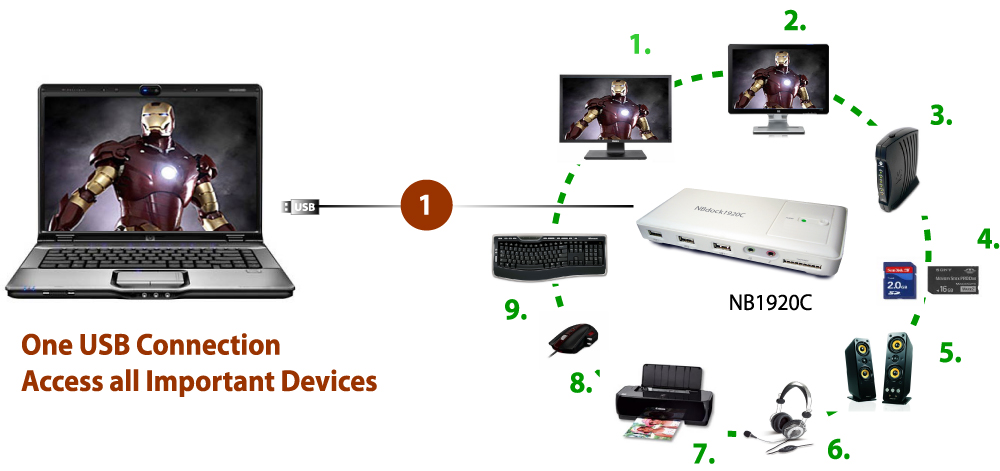

It offers the combined functionality of a 5-in-1 docking station by converting a single USB 2.0 port into multiple connection ports, including a VGA, DVI Port, card reader, 10/100 RJ45 network port, triple audio ports and three additional USB 2.0 ports.

With support of the impressive 1920x1080 (32-bit) resolution for connected LCD Monitors, the 5-in-1 functions helps to save time when swapping peripherals from one computer to another.

Product made in Taiwan with excellent quality and durability.

Watch this YOUTUBE video for a better understanding :)

http://www.youtube.com/watch?v=3fHvnsBcMtE

Features

Offers expandability for at-home use with all notebooks equipped with USB 2.0.
Simultaneously outputs VGA and DVI
Delivers smooth high-resolution up to 1920 x 1080
Easily connect additional monitor and Notebook/Desktop via USB 2.0 port.
Compatible with all Notebook/Desktop computers.
Combo Card Reader for most popular memory card access.
Three USB ports let you connect your most used peripheral.
Audio out port for external speakers.
Microphone input port and Earphone jack (green) output for easy Skype/MSN using (Speaker disable after earphone plug in)
Mirror, Extend and Primary a computer display workspace.
Support rotation (Normal/Left/Right/Upside-Down) function control.
Supports left, right, up and down extend display.
Works seamlessly with Windows 7, Windows Vista and Windows XP operating systems.
Ports include: 3 x USB 2.0, VGA, DVI, Speaker, Microphone, LAN and Card reader.

Specifications

Video:

Supported both VGA and DVI display simultaneously.

One VGA and one DVI output

Supports resolution up to 1920 x 1080.

USB:

Upstream connector: Mini-B type x 1.

Current of each port: Standard USB 500 mA

Peripherals: USB 2.0 x 3

Card Reader:

Combo Card Reader socket x 1.

Support memory card type : SD / SDHC / MMC / MS / MS Pro Duo

Network :

IEEE802.3: 10Base-T, 100Base-TX compatible, Ethernet RJ-45. 

Audio :

3.5mm Speaker out.

Earphone jack (green) out.

Microphone jack (pink) in.

Power requirement :

DC5V.

Dimensions : 178 x 94 x 27.7 (mm)

System Requirements

Windows XP X86 / Windows Vista X86/64 / Win7 X86/64

Equipped USB2.0 Notebook/Desktop computer

Display device(e.g. TV or LCD monitor) with VGA or DVI input

   CD-ROM drive (For software installation)

Package Contents

NBdock1920C docking station x 1

DC5V power adapter x 1

USB A to mini B cable x 1

Driver / Manual CD x 1

Quick Installation Guide x 1
